........90V系列PTC.........

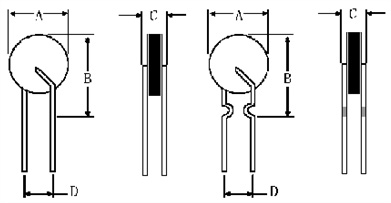

一、外形尺寸
二、規(guī)格參數(shù)
|
Model/PDF
|
Ih
(A) |
It
(A) |
Vmax
(V) |
Imax
(A) |
Max.Time To Trip At 3*Ih
(S) |
Pd
(W) |
Initial resistance (Ω)
|
Fig
|
|
|
Rmin
|
Rmax
|
||||||||
|
JK90-150
|
0.15
|
0.30
|
90
|
20
|
60
|
1.65
|
1.50
|
3.00
|
2
|
|
JK90-200
|
0.20
|
0.40
|
90
|
20
|
60
|
1.70
|
1.00
|
2.50
|
2
|
|
JK90-250
|
0.25
|
0.50
|
90
|
20
|
60
|
1.75
|
0.80
|
2.00
|
2
|
|
JK90-350
|
0.35
|
0.75
|
90
|
20
|
60
|
1.80
|
0.60
|
1.20
|
2
|
|
JK90-550I
|
0.55
|
1.10
|
90
|
20
|
60
|
2.00
|
0.30
|
0.90
|
1
|
|
JK90-550
|
0.55
|
1.10
|
90
|
20
|
60
|
2.00
|
0.35
|
0.90
|
2
|
|
JK90-750
|
0.75
|
1.50
|
90
|
20
|
60
|
2.50
|
0.20
|
0.60
|
2
|
|
JK90-900
|
0.90
|
1.80
|
90
|
20
|
60
|
3.00
|
0.10
|
0.50
|
2
|
三
、尺寸表
Model
A(max)
B(max)
C(max)
D(max)
JK90-150
4.8
12.7
3.0
5.1
JK90-200
5.4
13.3
3.0
5.1
JK90-250
6.2
14.0
3.0
5.1
JK90-350
7.8
15.6
3.0
5.1
JK90-550
9.7
17.5
3.0
5.1
JK90-550I
9.7
17.5
3.0
5.1
JK90-750
11.2
19.0
3.0
5.1
JK90-900
12.8
20.5
3.0
5.1
