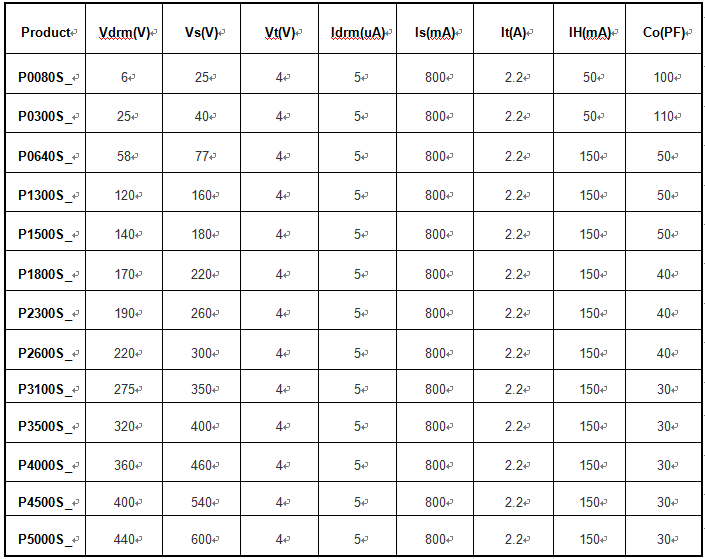

●Listed SIDACtors are bi-directional. All electrical parameters & surge ratings apply to forward and reverse polarities
。
●VDRM is measured at IDRM。
●VS is measured at 100V/µs.
●Special voltage (VS & VDRM) and holding current (IH) requirements are available upon request
。
●Off-state capacitance is measured at 1MHz with a 2 volt bias and is a typical value for “SA” and “SB” product. “SC”
●capacitance is approximately 2x the listed value
。
●The off-state capacitance of the P0080SB is equal to our “SC” device。
Surge Ratings
|
Series |
IPP 2x10µs Amps |
IPP 8x20µs Amps |
IPP 10x160µs Amps |
IPP 10x560µs Amps |
IPP 10x1000µs Amps |
ITSM60Hz Amps |
dI/dt Amps/µs |
|
A |
|
150 |
100 |
50 |
50 |
20 |
500 |
|
B |
|
250 |
150 |
100 |
|
30 |
500 |
|
C |
500 |
400 |
200 |
|
100 |
60 |
500 |
.......................................................ThermalConsiderations..................................
|
Package |
Symbol |
Parameter |
Value |
Unit |
|
|
Tj |
Junction Temperature Range |
-40 to +150 |
°C |
|
|
Ts |
Storage Temperature Range |
-65 to +150 |
°C |
|

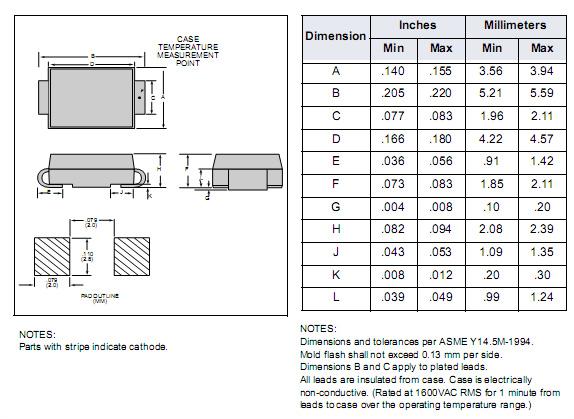

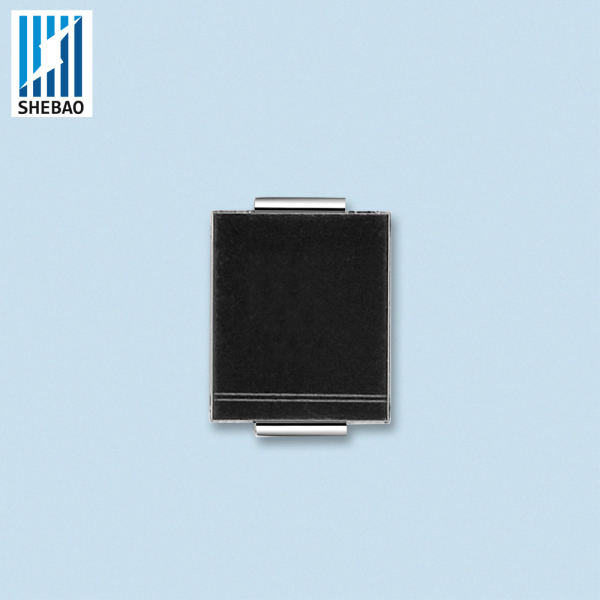

DO-214 |
Tc |
Maximum Case Temperature |
+75 |
°C |
|
Rθjc |
Thermal Resistance: junction to case |
+28 |
°C/W |
|
Rθja |
Thermal Resistance: junction to ambient |
+90 |
°C/W |

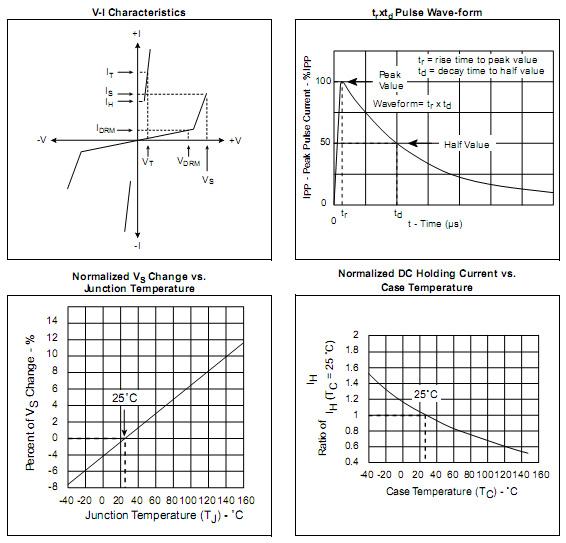

......................................................... Characteristic Curve......................................
